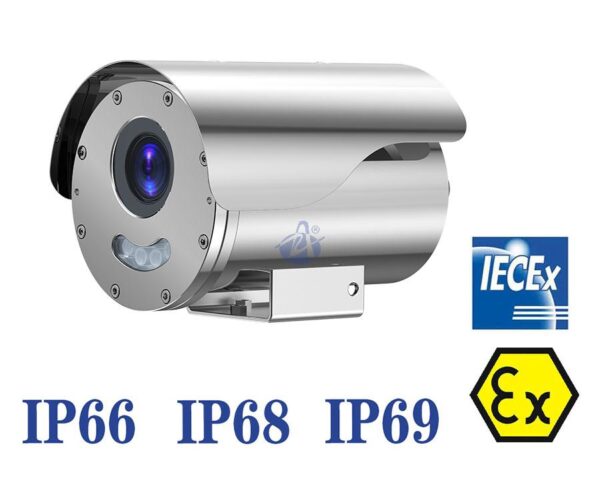

CZ109 4MP Explosion Proof Camera

Description

The ATEX & IECEx certified CZ109 are ZUOAN designed classic explosion-proof corrosion-proof camera, which can load various camera. This product has obtained group II explosion-proof level certification and temperature level certification, applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. For example: refine, oil extraction, gas extraction, chemical, petrol station and other environment.

Main Features:

· ATEX, IECEx certified

· Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22

· Ex db IIC T6 Gb/Ex tb IIIC T80℃ Db

· Stainless steel 304/316L

· Optional electropolished or corrosion resistant paint finish

· Enclosure Protection:IP66 IP68 (2m 2h) IP69

· 4MP, Max. 2560 X 1440 resolution

· 1/1.8″ progressive scan, CMOS image sensor

· 4x optical zoom; focal length 2.8 mm to 12 mm

· Power input: AC100-240V, AC24V, PoE, DC12V (choose one option)

· 3D DNR, low bit rate, digital WDR

· Zoom speed: 1.7 s

· IR cut filter with auto switch

· H.264+, H.265

· Small size and low power consumption

Drawings

ZAZ100B Wall bracket with adaptor

General

Dimension
